product Information
| Technical Parameters | |

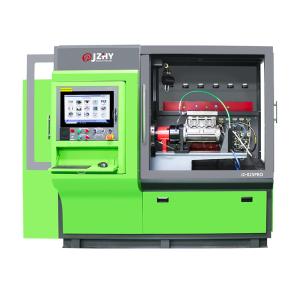

| Model Number | JZ-825PRO |
| Color | Green |
| Frequency | 50Hz/60Hz |
| Motor Height | 180mm |
| Main Output | 45kw |
| Speed | 0-4000RPM |
| Speed Control Mode | Frequency Controller |
| CR Pump Motor Output | 5.5kw |
| Diesel Supply Motor Output | 0.75kw |
| Engine Oil Pump Motor Output | 0.55kw |
| Oil Tank Cooling Output | 370kw |
| Powe | 380V AC 3-Phase-4-Wire |
| Heating/Cooling | 5P Air Conditoning |
| Diesel Tank Volume | 120L Filtration:3μm |
| Engine Oil Tank Volume | 40L Filtration:5μm |
| Fuel Temperature | 40℃±2℃ |
| Nozzle/pump Flow | Gear Flow Sensor |
| Flow Metering Unit | 0.008-2L/min |
| Control Return Voltage | DC 12V DC 24V |
| ECU Internal Boost | 0-200 VDC(max) |
| Max CR Pressure | 2700Bar |
| Rail Pressure Accuracy | ±5 Bar |
| Diesel Supply Pressure | 0-2.5Mpa |
| Oil Supply Pressure | 0-2.5Mpa |
| Injector Frequency | 400-6000n/M |
| Pulse Width | 100-3000μm |
| Machine Dimension | 2510*1410*1960mm |
| Packing Dimension | 2580*1500*2210mm |
| Net Weight | 1682KG |
| Gross Weight | 1934KG |
Injectors & Pumps Testing
Test GDi injector
Optional Function
Generate Correction Codes
