| Technical Paramaters | |

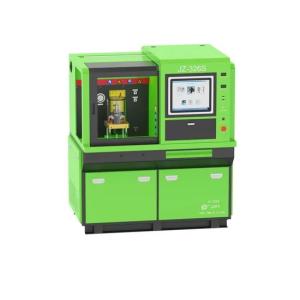

| Model Number | JZ-326S |
| Color | Green |
| CR Pump Motor | 5.5kw |
| Medium Pressure Pump Motor | 7.5kw |
| Speed Control Mode | Frequency Converter |
| Main Output | 380V AC 3-Phase-4-Wire |
| Cooling System | Fan Cooling |
| Diesel Tank Volume | 20L Filtration:3μm |
| Engine Oil Tank Volume | 20L Filtration:5μm |
| Fuel Temperature | 40ºC ± 2ºC |
| Nozzle Flow Sensor | Gear Flow Sensor |
| Flow Metering Unit | 0.008~2L /min |
| Control Return Voltage | DC 12V DC 24V |
| ECU Internal Boost | 0-200 VDC (max) |
| CR Pressure | 0-2700 Bar |
| Rail Pressure Accuracy | ±5 Bar |
| Max Medium CR Pressure | 250Bar |
| Diesel Supply Pressure | 0~2.5 Mpa |
| Engine Oil Supply Pressure | 0~2.5 Mpa |
| Injection Frequency | 400-6000 n/M |
| Pulse Width | 100-3000 μs |
| Noise Level | <85 dB |
| Machine Dimension | 1440*1010*16mm |
| Packing Dimension | 1550*1200*1740mm |
| Net Weight | 500kg |
| Gross Weight | 530kg |
Test High-Pressure CR Injector
Test Medium-Pressure CR Injector
Two-Way Operation
Push Display Panel To Switch Operation Room
HEUI
Standard Functions:
Detect engine oil/diesel leakage
CR
Standard Functions:
Test piezoelectric injector
Test smart injector
Test 6-pin injector
Generate IQA code
Real-time display injection / return curves
CR injection seal testing
Optional Functions:
